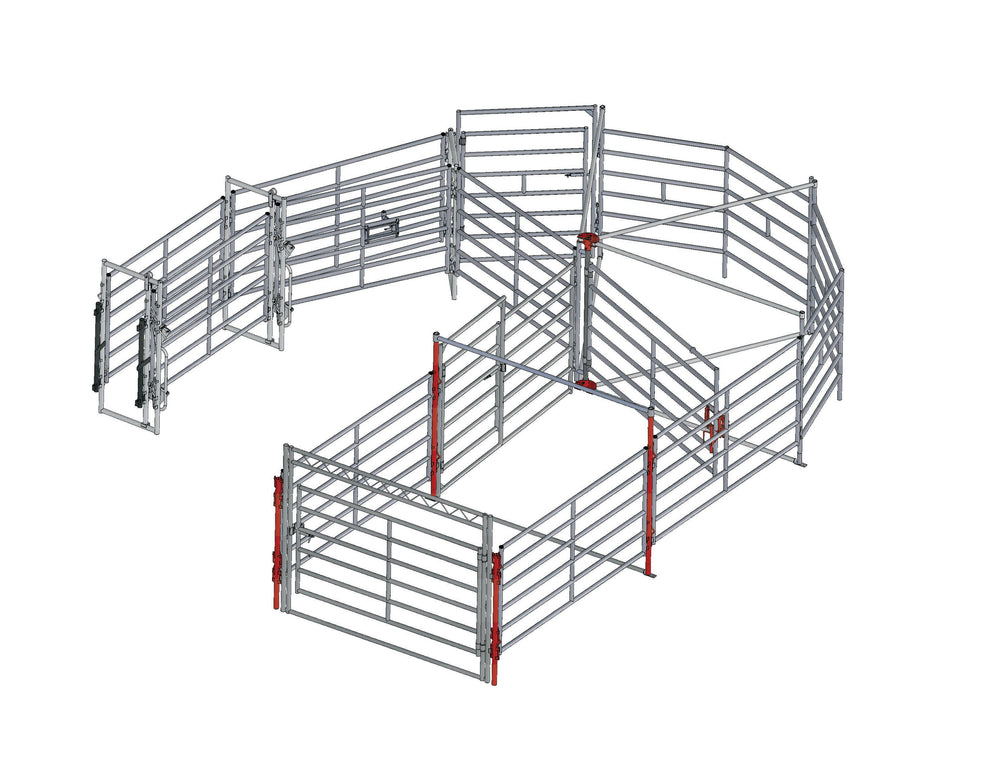

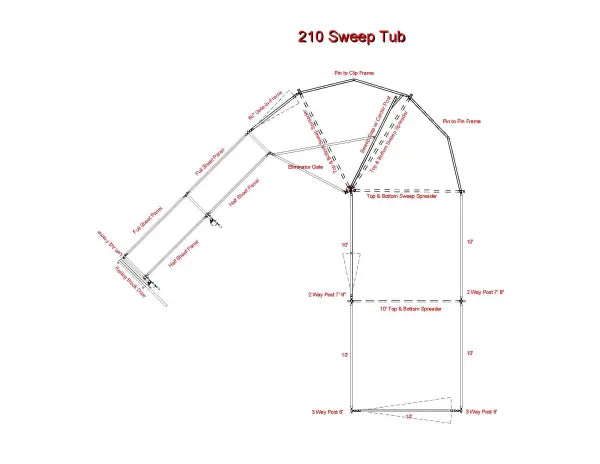

SWEEP SYSTEM - 210

Same system as the 270. Built for facilities where a full 180-degree turn isn't possible.

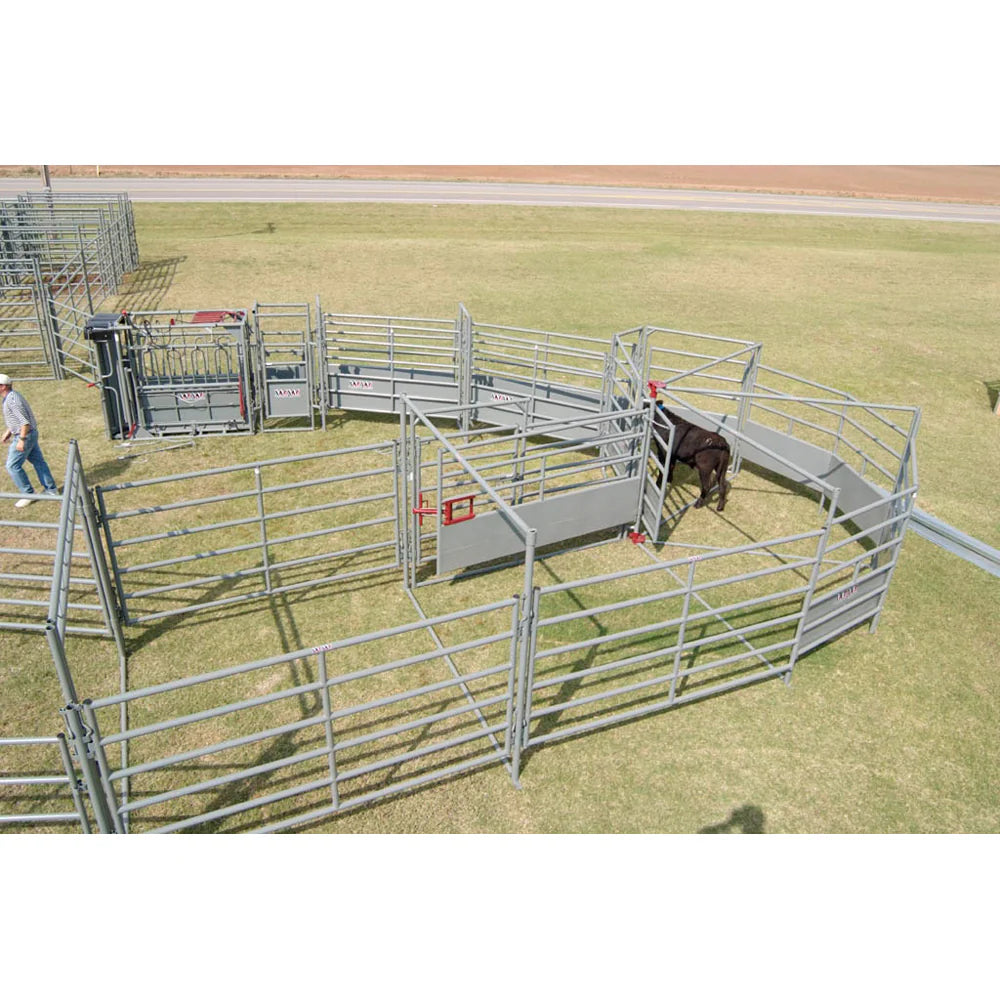

If you've looked at the 270 and your facility layout won't accommodate a full 180-degree cattle turn, the 210 is your answer. One fewer tub panel, slightly lower price, and the flexibility to direct cattle at any angle from 90 degrees to somewhere in between — whatever your building, pen layout, or working setup requires.

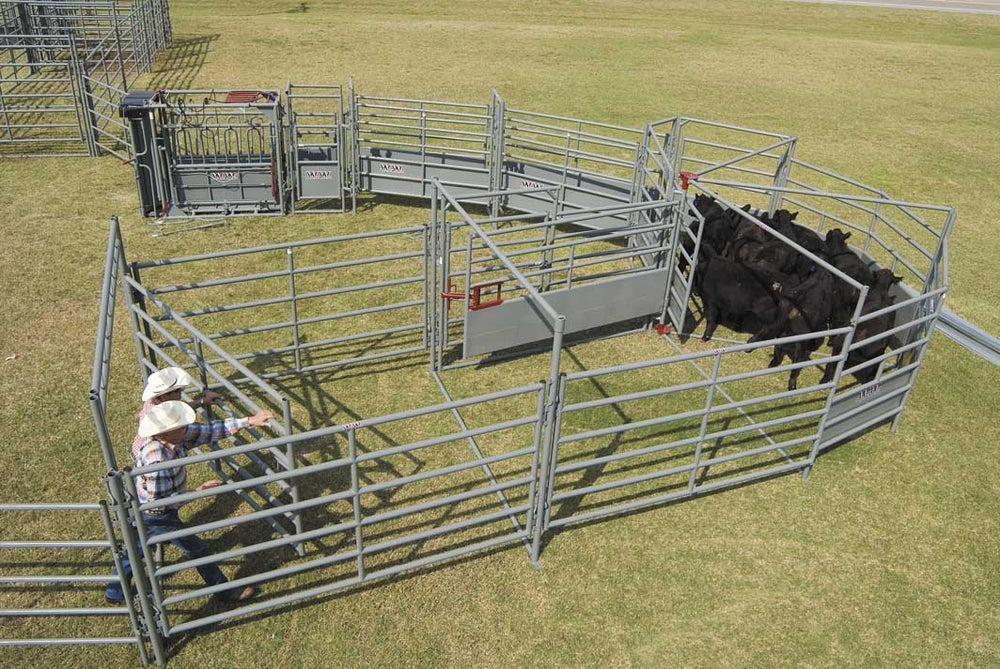

The animal flow logic still applies: cattle move forward through a curved tub and into a single-file alley leading to your chute. The difference is purely directional. Where the 270 sends cattle back the direction they came from, the 210 gives you the option to send them 90 degrees off their entry path — or anywhere in between — to fit your specific setup.

Everything else is identical to the 270. Same 2" 14-gauge tubing, same 6-foot height, same 6 horizontal rails, same spring-loaded crowd gate latch, same pin-together panel system with no rattling chains to spook cattle, same add-on options.

Three sheeting configurations — choose what fits your facility:

Open - no sheet metal, maximum airflow, preferred in hot climates

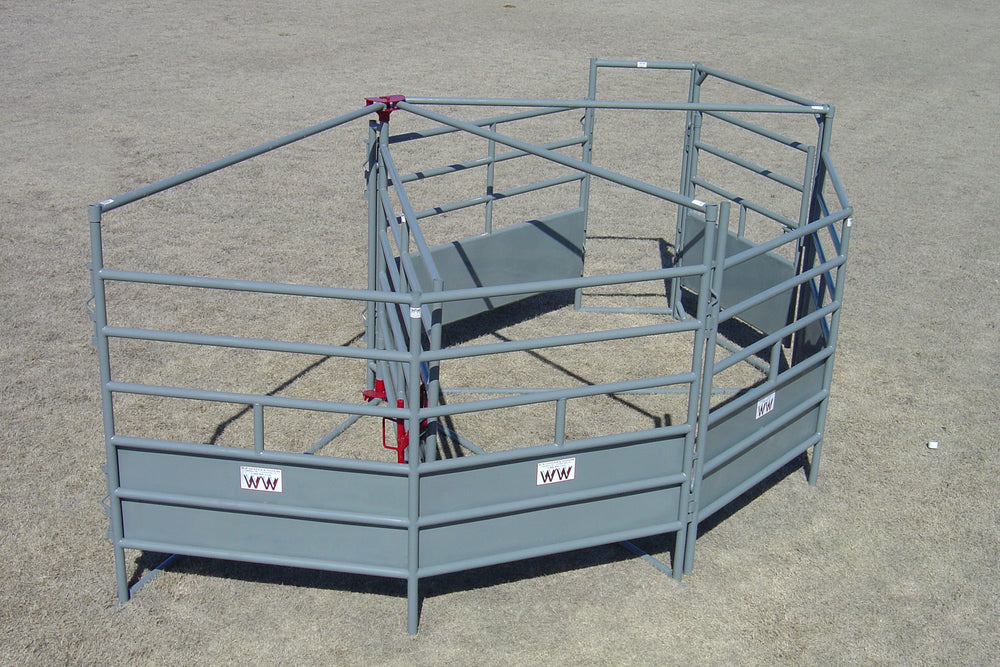

Half Sheeted - sheeted tub, open alley

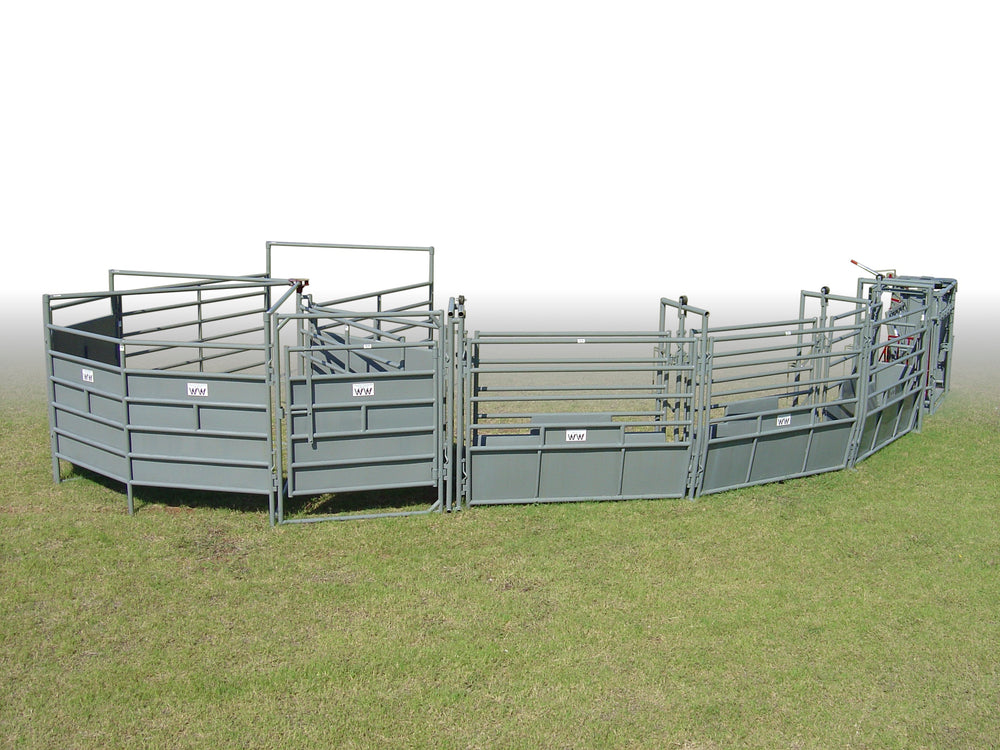

Full Sheeted - fully sheeted tub and half-sheeted alley, reduces visual distractions for better cattle flow

Optional add-ons:

Eliminator Gate - eliminates corners in the tub for no-hassle cattle movement and maximum operator safety

Bull Sheet - solid sheeting that blocks outside distractions and keeps cattle focused forward through the alley

V Trap with 60" Gate-in-Frame - allows easy sorting or loadout to either side at the alley exit
