Cattle Handling

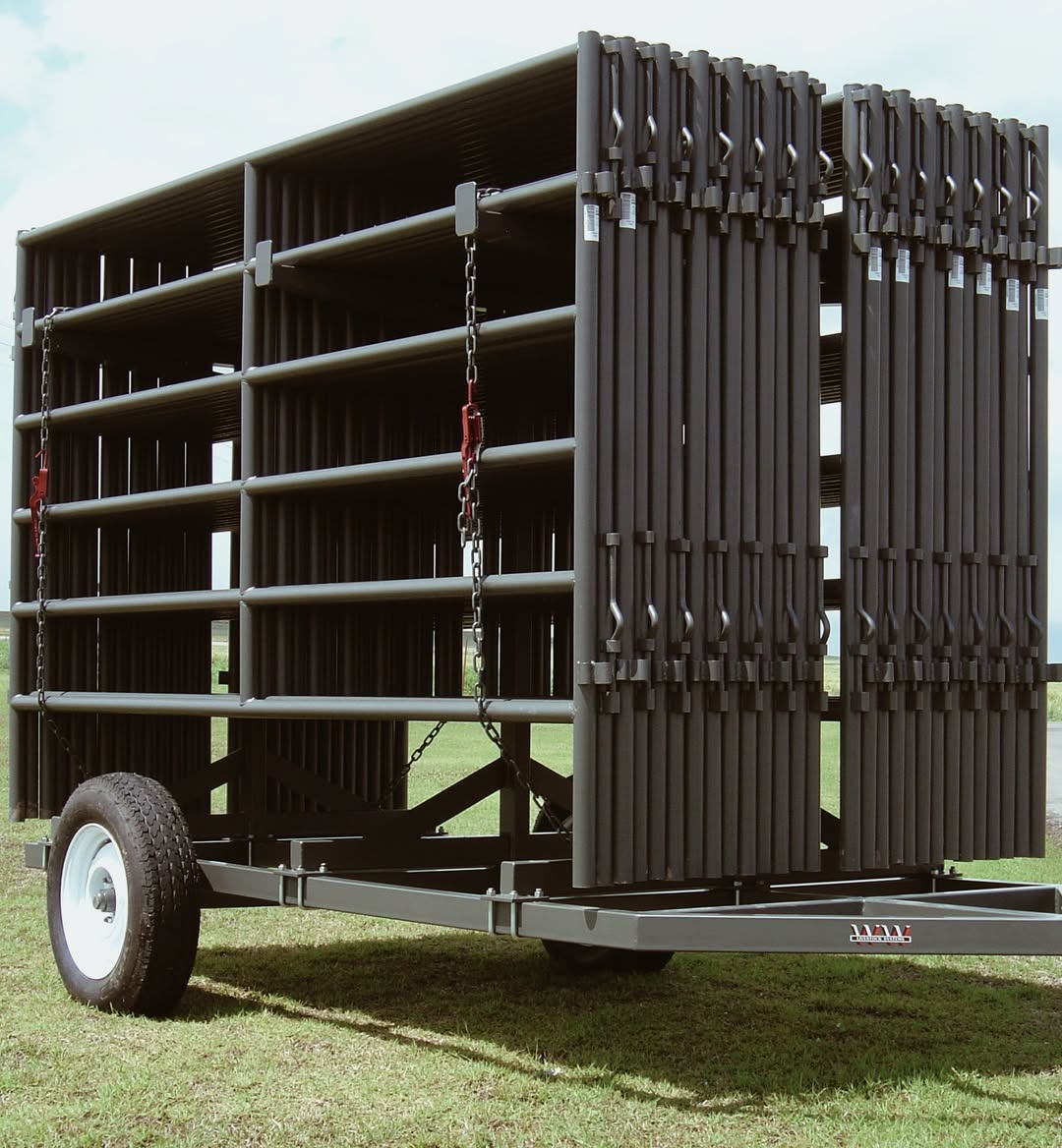

WW CHAPARRAL PANELS & GATES
Heavy enough for cattle. Versatile enough for everything else.
The Chaparral is WW's workhorse panel — the one that shows up at arena fence, time event cattle pens, portable corral setups, horse facilities, and anywhere you need a serious panel without the full weight and footprint of a Classic. Fabricated from 1.9" 16-gauge tubing meeting ASTM A-513 1008/1010 standards, it looks nearly identical to the Classic at a glance — an eighth of an inch smaller in diameter, one gauge lighter — but it's still heavier than most competitor panels marketed as heavy-duty.
Unlike Classic panels, which require posts as their leg, Chaparral panels are self-standing — each panel has its own J-leg (optional) built in, which means no connecting posts required. That makes them faster to set up and tear down for portable applications and gives you more flexibility in how you configure a pen. All components connect with self-contained pins for tool-free interlocking.
At rodeos, the Chaparral is the panel of choice for arena fence and time event cattle areas — calves and steers at 500 lbs and under. Where the rough stock pens behind bucking chutes call for Classic, the arena fence and roping boxes run Chaparral. That's the dividing line, and it reflects how the products were designed.
Chaparral Panels Available 2'4" to 16' wide, all 6' tall. Standard open rail.
Chaparral Panels with J-Legs Same panel dimensions with integrated J-leg — no post required. Available 2'4" to 16'.
Chaparral Corral Gates Available 6' to 16'.
Chaparral Gate Panels (G4) Available in 8', 10', and 12'.
Chaparral Gate-in-Frame Available 3', 4', 5', and 6'.
Chaparral High Pole Gates Available in 8', 10', and 12' widths at either 7'8" or 9'6" tall.
Chaparral Alley Control Frame: 28" Chaparral Alley Control Gate: 28"
Chaparral Starter Post For use where a post is needed at a connection point in a Chaparral system.
Construction:
- Tubing: 1.9" 16-gauge, ASTM A-513 1008/1010
- Panel height: 6' tall (self-standing with J-leg)
- Self-contained connecting pins for tool-free interlocking
- Available finish: Powder coat · Pre-galvanized
Cattle Handling
WW CLASSIC PANELS & GATES
WW Classic Panels & Gates. The original standard. Still the one.
For over 75 years, when stockmen talked about a panel that could take a hit and hold, they were talking about WW Classic. Built from 2" 14-gauge tubing to ASTM A-513 1008/1010 standards, the Classic Series is the panel line competitors have spent decades trying to replicate — and the one WW ranchers have trusted to outlast everything else in their operation.
Panels stand 5 feet tall and mount 6 feet high on Classic posts. Every component connects with beveled self-contained pins — fast, tool-free, and reliable in the field when conditions aren't ideal and you don't have time to fight your equipment.
Classic Panels Available from 2' to 16' in standard open rail, half sheeted, and full sheeted configurations. Mix lengths to fit any pen layout. Sheeted panels reduce visual distractions to keep cattle moving forward through alleys and working areas.
Classic Corral Gates Available 10' to 16'. The standard swing gate for permanent and portable corral setups.
Classic Gate Panels (G4) Available in 8', 10', and 12'. A panel with a built-in gate — used where you need pass-through access within a panel run without a full gate post setup.
Classic Gate-in-Frame Available 24" to 84", including half sheeted and full sheeted options in the 60" size. Used for alley walk-through access and sorting applications.
Classic High Pole Gates (HPG) Available in 8', 10', and 12' widths at either 7'8" or 9'6" tall. The taller gate for high-traffic entries, arena applications, and anywhere you need horseback-height clearance.
Classic Alley Control Frame & Gate 32" frame and gate — the standard hardware for crowd alley entries and single-file alley control points.
Posts & Hardware A full range of Classic connecting posts: 1-way, 2-way, 2-way 90°, 3-way, and 4-way in 6' height. Spreader posts in 2-way and 3-way configurations at 7'8" and 9'6". Panel mounting brackets with clips or pins for permanent fence attachment.
Construction:
- Tubing: 2" 14-gauge, ASTM A-513 1008/1010
- Panel height: 5' tall, mounts 6' high on Classic post
- Connecting pins: Beveled for fast, tool-free interlocking
- Available finish: Powder coat or pre-galvanized steel
