WW CLASSIC PANELS & GATES
WW Classic Panels & Gates. The original standard. Still the one.
For over 75 years, when stockmen talked about a panel that could take a hit and hold, they were talking about WW Classic. Built from 2" 14-gauge tubing to ASTM A-513 1008/1010 standards, the Classic Series is the panel line competitors have spent decades trying to replicate — and the one WW ranchers have trusted to outlast everything else in their operation.

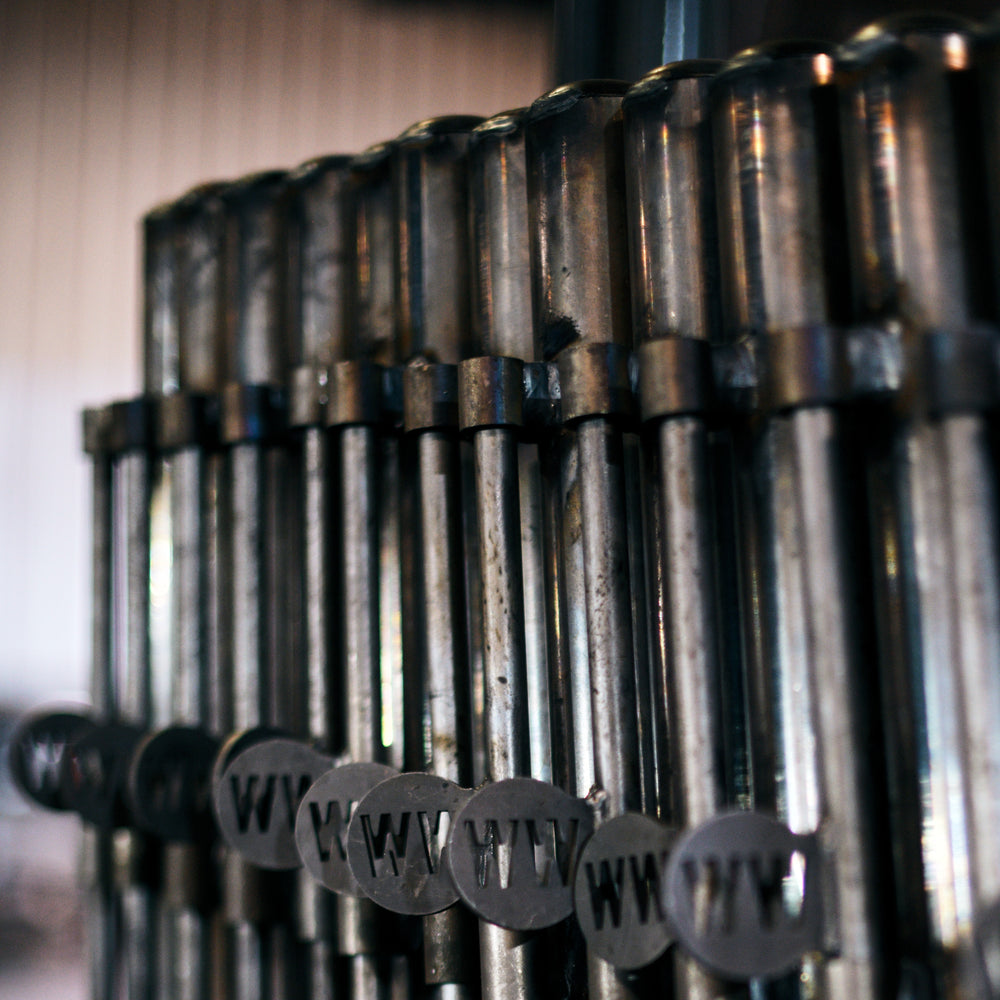

Panels stand 5 feet tall and mount 6 feet high on Classic posts. Every component connects with beveled self-contained pins — fast, tool-free, and reliable in the field when conditions aren't ideal and you don't have time to fight your equipment.

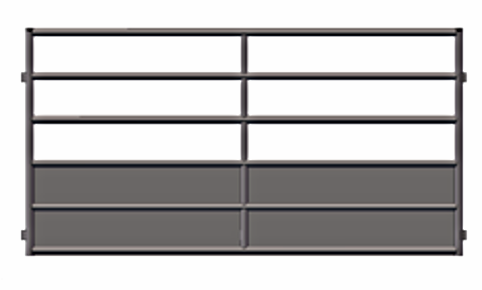

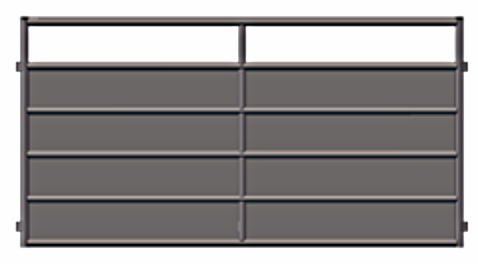

Classic Panels Available from 2' to 16' in standard open rail, half sheeted, and full sheeted configurations. Mix lengths to fit any pen layout. Sheeted panels reduce visual distractions to keep cattle moving forward through alleys and working areas.
Classic Corral Gates Available 10' to 16'. The standard swing gate for permanent and portable corral setups.

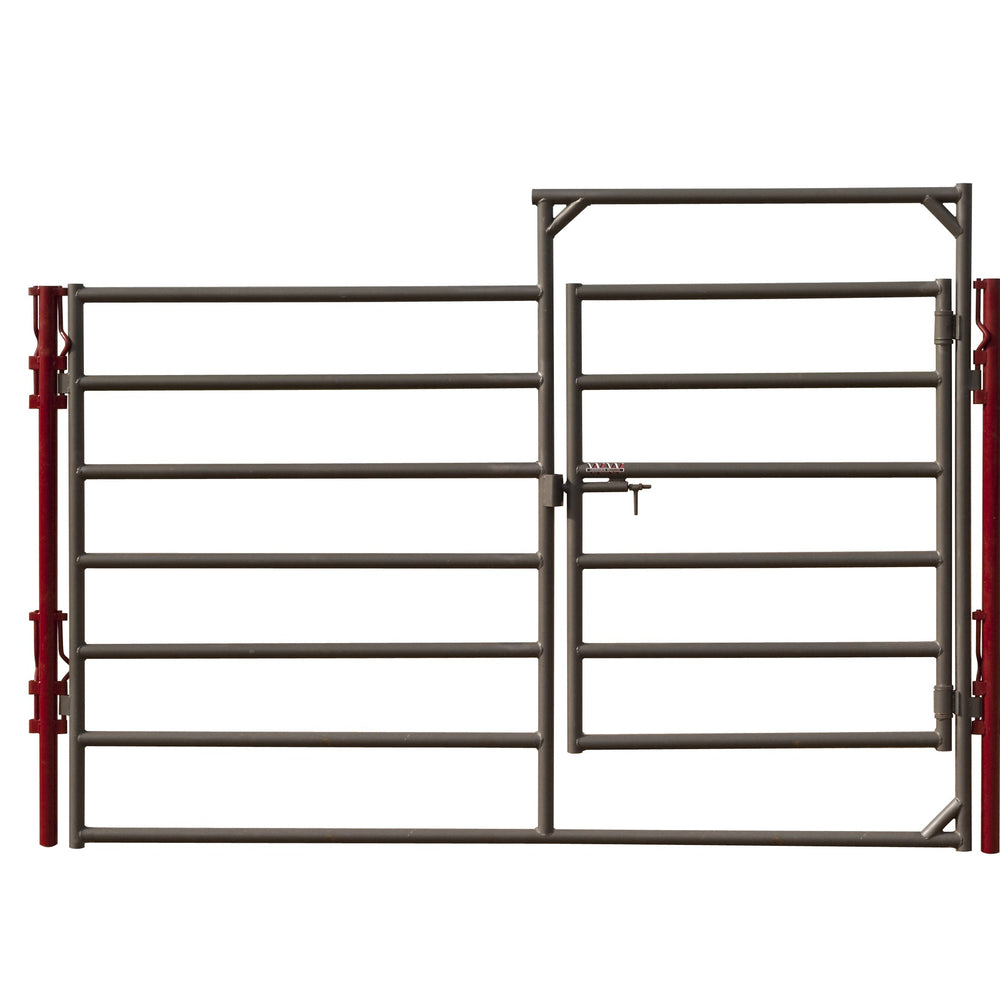

Classic Gate Panels (G4) Available in 8', 10', and 12'. A panel with a built-in gate — used where you need pass-through access within a panel run without a full gate post setup.

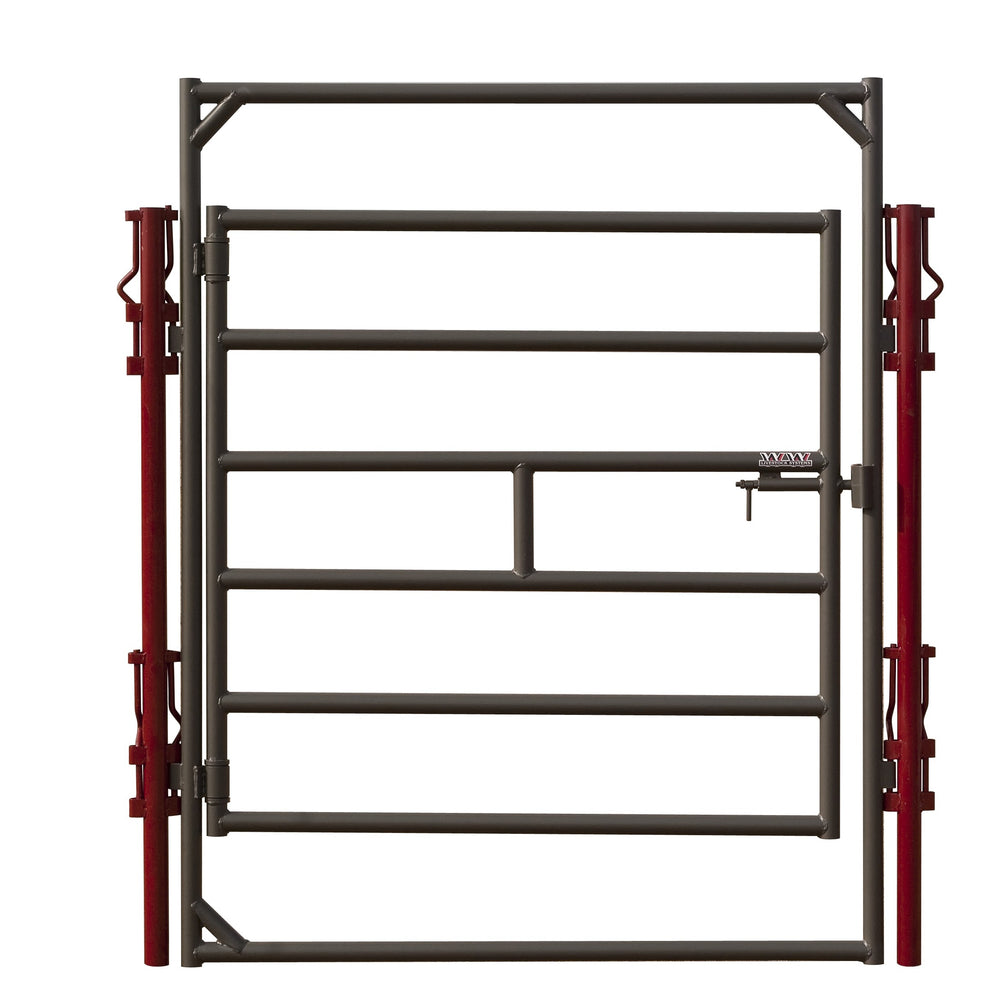

Classic Gate-in-Frame Available 24" to 84", including half sheeted and full sheeted options in the 60" size. Used for alley walk-through access and sorting applications.

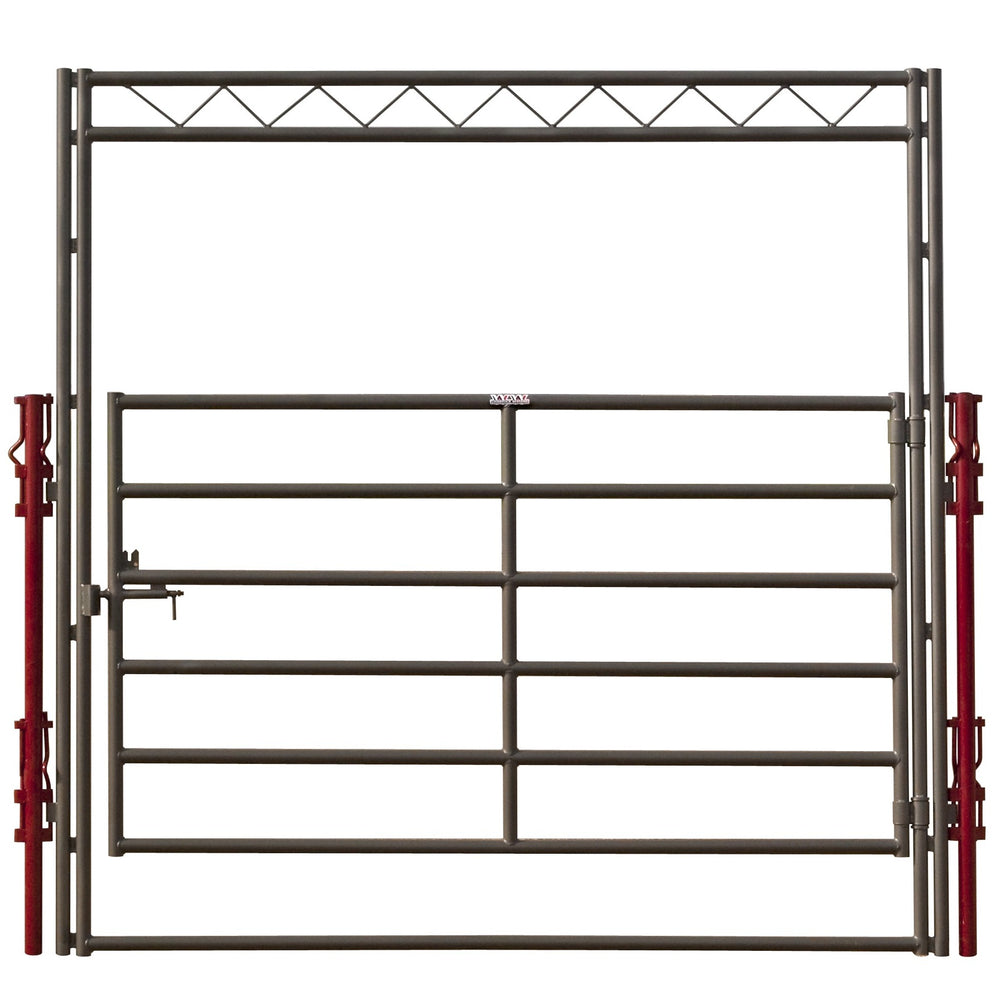

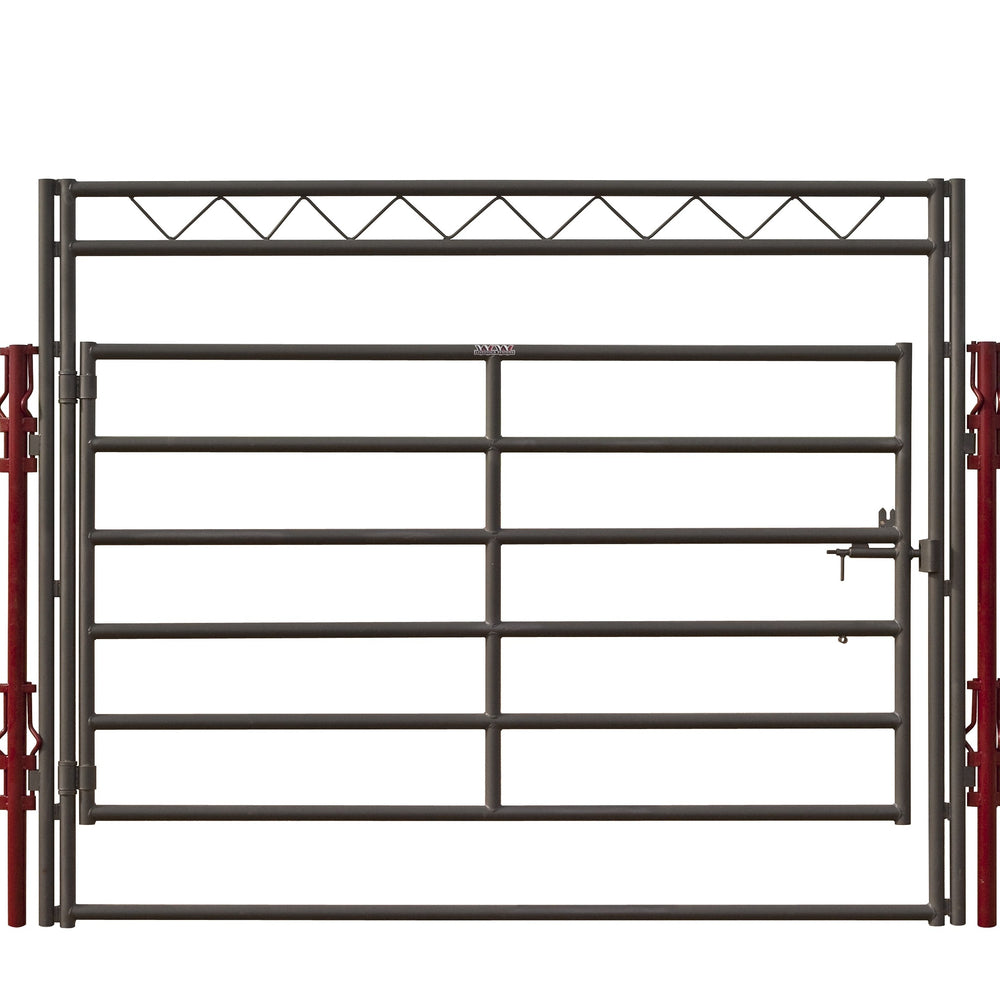

Classic High Pole Gates (HPG) Available in 8', 10', and 12' widths at either 7'8" or 9'6" tall. The taller gate for high-traffic entries, arena applications, and anywhere you need horseback-height clearance.
Classic Alley Control Frame & Gate 32" frame and gate — the standard hardware for crowd alley entries and single-file alley control points.
Posts & Hardware A full range of Classic connecting posts: 1-way, 2-way, 2-way 90°, 3-way, and 4-way in 6' height. Spreader posts in 2-way and 3-way configurations at 7'8" and 9'6". Panel mounting brackets with clips or pins for permanent fence attachment.
Construction:
- Tubing: 2" 14-gauge, ASTM A-513 1008/1010
- Panel height: 5' tall, mounts 6' high on Classic post
- Connecting pins: Beveled for fast, tool-free interlocking
- Available finish: Powder coat or pre-galvanized steel
